PTT70-W58EH Heat Transfer Label: High-Performance Identification Solution

The PTT70-W58EH heat transfer label represents a professional-grade identification material engineered for industrial environments, offering exceptional printing performance and reliable adhesion properties. This specialized label has become an optimal choice for logistics, packaging, and retail sectors, combining premium material composition with consistent performance characteristics to ensure durable identification across various application scenarios.

Technical Specifications

The PTT70-W58EH heat transfer label features precise engineering specifications that guarantee outstanding performance in demanding conditions:

Adhesive Performance

This label utilizes an advanced adhesive formulation characterized by high initial tack and superior final adhesion strength. The adhesive demonstrates excellent performance on numerous packaging materials, making it suitable for identification applications in food, publications, alcoholic beverages, drinks, electrical appliances, and cultural goods.

Adhesion Data

The PTT70-W58EH label exhibits remarkable peel adhesion properties, ensuring secure bonding to various surfaces:

• Initial Adhesion: 12N/25mm (FTM 9 stainless steel test)

• 20-Minute Peel Adhesion:

  • 180° angle test: 18N/25mm steel or peel (FTM 1 stainless steel)

  • 90° angle test: 9N/25mm steel or peel (FTM 2 stainless steel)

Temperature Characteristics

The label maintains performance across a wide temperature range, accommodating diverse environmental conditions:

• Minimum Application Temperature: 0°C

• Service Temperature Range: -30°C to +90°C (stable after 24 hours)

Applications and Recommended Uses

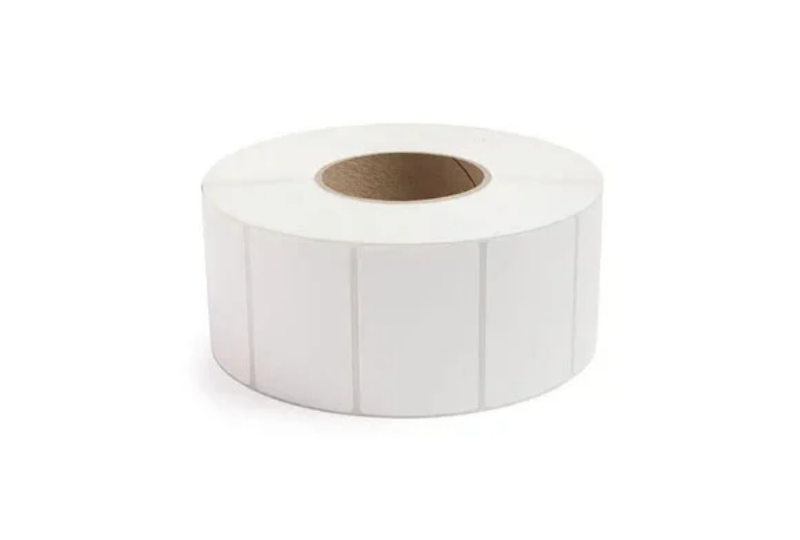

The PTT70-W58EH heat transfer label is specifically designed for general-purpose and die-cut applications, demonstrating exceptional performance in barcode printing. Its superior print surface ensures high-definition output of barcodes, text, and graphics, making it ideal for logistics tracking, product identification, and inventory management systems.

Application Considerations

While this label performs excellently in most application scenarios, it is not recommended for small cylindrical container labeling. To ensure optimal performance, users should conduct comprehensive testing in the final application environment to verify material suitability for specific requirements.

Printing Performance and Processing Methods

The PTT70-W58EH label’s advanced surface coating technology provides outstanding print adaptability:

Printing Characteristics

• Surface Properties: White smooth paper with a non-glossy surface, featuring excellent ink absorption

• Ribbon Compatibility: Suitable for various barcode thermal transfer printing, compatible with wax, wax-resin, and resin ribbons

• Processing Adaptability: Applicable for rotary and flatbed processing, suitable for hot stamping processes

Printing Guidelines

To achieve optimal printing results, users should consider:

• Ink Control: Monitor ink viscosity to prevent coating detachment due to sticky ink

• Tension Management: Avoid excessive rewinding tension to prevent adhesive oozing

• Precision Printing: Conduct comprehensive print testing and evaluation for fine barcode printing

Storage Conditions and Shelf Life

The PTT70-W58EH heat transfer label maintains optimal performance when stored under appropriate conditions:

Storage Requirements

• Shelf Life: 12 months (applies only to Jinya-supplied materials without further processing)

• Temperature Control: Constant environment of 23 ± 2°C

• Humidity Management: Relative humidity of 50 ± 5%

• Environmental Requirements: The Storage area must be kept dry and clean

Storage Recommendations

To preserve material performance, users should:

• Keep materials in original packaging when not in use to prevent dust and contamination

• Avoid exposure to direct sunlight or heat sources

• Implement first-in-first-out (FIFO) inventory management principles

The PTT70-W58EH heat transfer label stands as a premium identification solution through its precision material engineering and reliable performance characteristics. Whether for high-volume logistics identification or detailed product labeling, this material delivers consistent, professional-grade performance that meets the rigorous demands of modern industrial identification requirements.
